MULTIPLE ANTENNA TECHNOLOGY IN LTE

MULTIPLE ANTENNA TECHNOLOGY IN LTE

The use of multiple antenna technology allows the exploitation of the spatial domain as another new dimension. This becomes essential in the quest for higher spectral efficiencies With the use of multiple antennas the theoretically-achievable spectral efficiency scales linearly with the minimum of the number of transmit and receive antennas employed, at least in suitable radio propagation environments.

Multiple antenna technology opens the door to a large variety of features, but not all of them easily deliver their theoretical promises when it comes to implementation in practical systems.

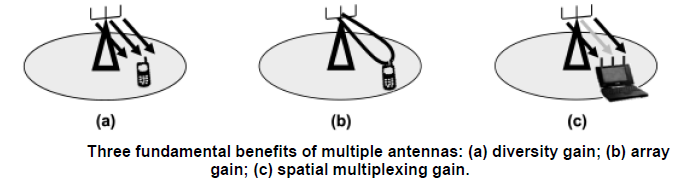

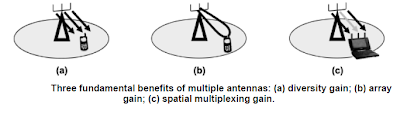

Multiple antennas can be used in a variety of ways, mainly based on three fundamental principles, schematically illustrated in below Figure

• Diversity gain: Use of the space-diversity provided by the multiple antennas to improve the robustness of the transmission against multipath fading.
• Array gain: Concentration of energy in one or more given directions via precoding or beam forming. This also allows multiple users located in different directions to be served simultaneously (so-called multi-user MIMO).
• Spatial multiplexing gain: Transmission of multiple signal streams to a Single user on multiple spatial layers created by combinations of the available antennas.

Multiple Antenna Technology in LTE

Multiple antenna technology in LTE, often referred to as MIMO (Multiple Input Multiple Output), plays a crucial role in enhancing the capacity, data rate, and reliability of the LTE network. This technology uses multiple antennas at both the base station (eNodeB) and the user equipment (UE) to improve signal quality and transmission efficiency. Here’s how it works in LTE:

MIMO Technology: MIMO allows the transmission and reception of multiple data streams over the same frequency channel by using multiple antennas. It improves data rates by exploiting multipath propagation, where signals take different paths to reach the receiver, which can be used to transmit multiple independent streams. In LTE, MIMO is typically used in both the downlink and uplink.

Types of MIMO in LTE:

• 2×2 MIMO: In this configuration, both the eNodeB and UE have two antennas each. It can support two data streams, enhancing the data rate.
• 4×4 MIMO: This configuration uses four antennas at both the eNodeB and UE, allowing four data streams for higher data rates and improved performance, especially in dense network environments.
• 8×8 MIMO: This is an advanced configuration used in LTE-Advanced, providing up to eight data streams for even higher throughput, although it requires more advanced hardware and precise channel estimation.

Spatial Diversity and Spatial Multiplexing: MIMO in LTE can take advantage of two key techniques:

• Spatial Diversity: This technique uses multiple antennas to provide diverse paths for signal transmission, reducing the risk of signal degradation due to fading.
• Spatial Multiplexing: Multiple data streams are transmitted simultaneously over the same frequency channel, increasing the overall data throughput.

Benefits of Multiple Antenna Technology:

• Higher Data Rates: MIMO significantly boosts data rates by allowing multiple data streams to be sent simultaneously, improving throughput.
• Improved Signal Quality: By using multiple antennas, the network can exploit multipath signals, improving signal strength and reducing errors.
• Better Coverage and Reliability: MIMO enhances network coverage, especially in challenging environments, by providing spatial diversity and increasing link reliability.
• Increased Capacity: MIMO can serve multiple users simultaneously on the same frequency, boosting overall network capacity and efficiency.

In summary, multiple antenna technology (MIMO) is vital to the success of LTE by significantly improving data rates, network capacity, coverage, and overall performance. It leverages multiple antennas to transmit several data streams simultaneously, allowing for better spectrum efficiency and user experience.
