Synchronization & BCH for TDD Frame in LTE

Synchronization:
- Purpose: Achieves alignment between the base station (eNodeB) and User Equipment (UE) in LTE Time-Division Duplex (TDD) frames.
- Methods: Time synchronization ensures proper timing, and frequency synchronization aligns the carrier frequency.
- Importance: Synchronization is critical for avoiding interference and optimizing signal reception.
Broadcast Channel (BCH):
- Function: Carries essential system information, including cell identity, bandwidth, and frame configuration.
- Location: Positioned in the first subframe of each TDD frame for downlink transmission.
- Critical for UE Initialization: Enables UEs to identify and synchronize with the serving cell.

In LTE TDD frames, synchronization ensures proper alignment between base stations and UEs, while the BCH carries vital system information for initialization and communication between network elements and user devices.

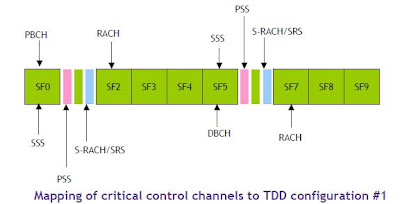

The Primary synchronization signal (PSS): is placed at the third symbol in subframes #1 and #6.
The secondary synchronization signal (SSS): is placed at the last symbol in subframes #0 and #5.
The S-RACH is transmitted on the UpPTS within the special frame.
The Primary Broadcast Channel (P-BCH) and the Dynamic Broadcast Channel (DBCH):
are located as in LTE FDD.

Random access typically uses one of the normal subframes as in FDD, allowing for a relatively long random-access preamble providing coverage and capacity also in large cells. However, in scenarios where random-access coverage is not an issue, a short random access preamble in the UpPTS can be used instead.

Synchronization and BCH for TDD Frame in LTE

In LTE, synchronization and Broadcast Channel (BCH) play important roles in maintaining smooth communication, especially in Time Division Duplex (TDD) systems. Here’s a breakdown of their functions:

1. Synchronization in TDD LTE

Synchronization in LTE ensures that the mobile device and the network are aligned in time, which is crucial for accurate data transmission. There are two main types of synchronization:

Time Synchronization: This aligns the transmission time between the device (UE) and the network (eNB), ensuring that data is sent and received at the right times. It helps to avoid interference and collisions.
Frequency Synchronization: This ensures that the device and the network are using the same frequency, avoiding frequency drift that could cause signal degradation or communication failure.

For TDD systems, synchronization is particularly important because the uplink and downlink share the same frequency band but operate at different times. Accurate time and frequency synchronization are required to prevent interference between the uplink and downlink transmissions.

2. Broadcast Channel (BCH) in LTE

The Broadcast Channel (BCH) is used to send essential information to all devices in the coverage area. In TDD LTE, BCH is responsible for broadcasting system information, allowing devices to understand how to access the network. There are two types of BCHs in LTE:

Primary Broadcast Channel (PBCH): It carries the master information block (MIB), which contains critical information like system bandwidth, physical layer parameters, and frame timing. It’s transmitted every frame and is the first message a device receives when it connects to the network.
Secondary Broadcast Channel (SBCH): It carries the system information block (SIB), which provides more detailed information about the network and its services. This data is necessary for devices to properly access and use the network.

Synchronization and BCH in TDD

In a TDD frame structure, synchronization and BCH work together to ensure devices can efficiently access the network. The device first receives the PBCH to get basic network details, then uses synchronization signals to align its timing with the network. This ensures that devices can send and receive data at the correct time slots, preventing interference between uplink and downlink transmissions.

Why It Matters

Synchronization and BCH are essential for efficient communication in LTE, especially in TDD systems, where the same frequency is used for both uplink and downlink. Proper synchronization ensures stable connections, while BCH helps devices quickly acquire necessary network information.
