What is main Difference between DL and UL in LTE ? OFDMA
- Advantages
- Robust against narrow-band co-channel interference
- Robust against Intersymbol interference (ISI) and fading
- High spectral efficiency
- Efficient implementation using FFT
- Drawbacks
- High Peak-to-Average Power Ratio
The power limitation is more problematic in UL than in DL Signal with high PAPR will limit the Tx power in UL and reduce coverage. LTE uses in UL a modified form of OFDMA process, called SC-FDMASC-FDMA = Single Carrier – Frequency Division Multiple AccessSC-FDMA improves the peak-to-average power ratio (PAPR) compared toOFDMReduced power amplifier cost for mobileReduced power amplifier back-off -> improved coverage
In DL, use OFDM together with some PAPR reduction techniques (“clipping and filtering”, “tones reservation”, etc…)
In UL, find an alternative to OFDM combining some of OFDM’s advantages, but with a PAPR equivalent to single carrier’s one: DFT-Spread OFDM (DFT-SOFDM), also known as Single-Carrier FDMA (SC-FDMA).

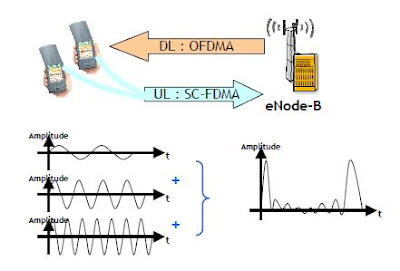

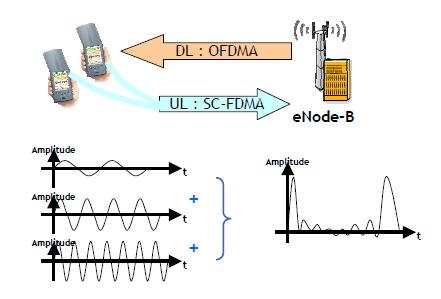

Difference Between DL and UL in LTE
In LTE, you’ll encounter two main types of communication: Downlink (DL) and Uplink (UL). The difference between them lies in the direction of data flow. Downlink refers to data being sent from the base station (eNodeB) to the user equipment (UE), while uplink is the opposite — data moving from the UE to the eNodeB.
For downlink, LTE uses OFDMA, which efficiently divides the spectrum into multiple subcarriers to send data to different users. I’d say this allows for high data rates and effective resource allocation when delivering data to many users at once. On the other hand, for uplink, LTE uses SC-FDMA, which is similar but optimized for low power consumption, making it ideal for the UE that typically has limited battery power.
The performance of DL and UL differs due to the design. While downlink generally provides higher data rates, uplink performance might be more limited because of the UE’s power constraints and smaller transmit power. These differences shape how the network manages traffic and resources for each direction to maintain efficiency.
