BEAMFORMING in LTE

BEAMFORMING in LTE

• If some knowledge of the downlink channels of the different transmit antennas, (more specifically some knowledge of the relative channel phases) is available at the transmitter side, multiple transmit antennas can be used to shape the overall antenna beam in the direction of a target receiver. In general, such beamforming can increase the signal-strength at the receiver in proportion to the number of transmit antennas.

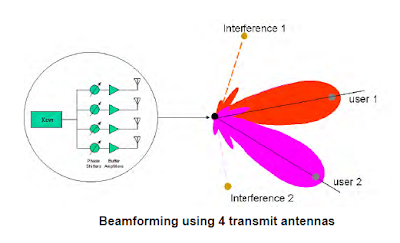

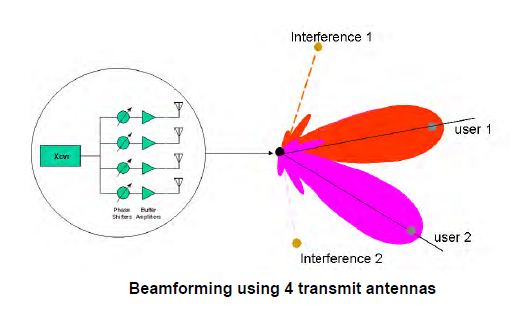

• The overall transmission beam can be adjusted in different directions by applying different phase shifts to the signals to be transmitted on the different antennas, as shown in Figure . The adjustments are generally based on estimates of the direction to the target mobile terminal derived from feedback measurements.
• Applying different phase shifts to the signals to be transmitted on the different antennas can be expressed, in vector notation, as applying a size NT ×1 precoding vector V to the signal to be transmitted.
•  If there is no radio channel time dispersion or if the effects of a time dispersive channel are compensated for (by using OFDM for instance), the precoding consists in rotating the transmitted signals to compensate for the instantaneous channel phase and ensure that the signals received on the different receive antennas are phase aligned.

Beamforming in LTE

Beamforming in LTE is a technique used to improve signal quality and reduce interference by directing radio signals towards specific user equipment (UE). It is a key feature of MIMO (Multiple Input Multiple Output) systems and is used in both the downlink and uplink to enhance performance and efficiency. Here’s how beamforming works in LTE:

How Beamforming Works: Beamforming uses multiple antennas at the base station (eNodeB) to transmit signals. These antennas work together to focus the signal energy in the direction of the intended UE. By controlling the phase and amplitude of the signals from each antenna, the base station can create a “beam” that is more focused and directed towards the user. This improves the signal-to-noise ratio (SNR) and minimizes interference from other users or cells.

Types of Beamforming:

• Closed-Loop Beamforming: This method relies on feedback from the UE, such as Channel State Information (CSI), to adjust the beam direction dynamically. This allows the system to adapt to changing environmental conditions, like mobility or obstacles.
• Open-Loop Beamforming: In open-loop beamforming, the base station does not rely on feedback from the UE but instead uses pre-configured beam patterns. This is less adaptive but simpler to implement.

Benefits of Beamforming in LTE:

• Improved Signal Quality: By focusing the radio energy towards the UE, beamforming enhances the received signal quality, leading to better data rates and coverage.
• Reduced Interference: Beamforming helps in reducing interference from neighboring users or cells by concentrating the energy on the target UE.
• Enhanced Capacity: With beamforming, more users can be served simultaneously in the same frequency band, improving network capacity.

In summary, beamforming is a powerful technique in LTE that helps improve signal quality, reduce interference, and increase network capacity by focusing the signal energy towards the intended UE. It is an essential component of advanced MIMO systems in LTE networks.
